CAMSS 20Q LAVATORY

Shelter Model	CAMSS 20Q
Part Number	CAMSS-20Q32-Lavatory-T (Tan), CAMSS-20Q32-Lavatory-G (Green)
Dimensions	20′ W x 32’6″ L x 10′ H – 1150 lbs. Unpackaged
Square Footage	650 Sq. Ft.
Set-Up and Strike Time / People	30 Minutes / 4 People
Typical Uses	Shower / Latrine
Frame Arches	2″ x 2″ Aluminum Slip-Fit Arches
Cover & End Panels	15 oz/sq yd Mil-Spec 44103D with FR, IR, Blackout, UV and Mildew Resistance
Windows	Four (4) Mesh Windows with Wind Resistant Blackout Covers
Personnel Door	One (1) Aluminum Hard Personnel Door (30″ x 80″) with Boot Connector
Zipper Entry	One (1) Double Zipper Entry (36″ x 84″) with Boot Connector
Floor	Non-Slip Mil-Spec 44103D with Vector Proofing and Removable without Shelter Disassembly
Liner	8 oz/sq yd White Mil-Spec Liner Fabric with FR, Blackout, UV and Mildew Resistance
ECU Ports and Air Sock	Two (2) Sets of Two (2) 18″ ECU Ports and a 6″ Cable Port, and Fabric Air Sock with Spot Cooling
Electrical	Single Phase Electrical Panel, Ten (10) Ruggedized Fluorescent Tube Lights, and Power Cable
Anchoring	Double Headed 18″ Base Spikes and Guy Ropes with Guy Spikes
Extreme Temperatures	Designed to Maintain Inside Temperatures of 40° to 80°F in Ambient Temperatures of -25° to 125° F with ECU
Wind	Engineered to Withstand Winds of 100 mph per ASCE 7-16
Snow	Engineered to Withstand 20 psf Ground Snow Load per ASCE 7-16
Durability	20 Set-up/Strikes and Fully Deployable
Other Lavatory Package Features	Five Shower Stalls, Five Flushing Toilet Stalls, Four Hand Washing Sinks, Personnel Hard Flooring

Recipient Email*

Email multiple recipients by separating email addresses with a comma.

Sender's Email*

Subject*

Message

Specifications for the CAMSS 20Q LAVATORY

View online

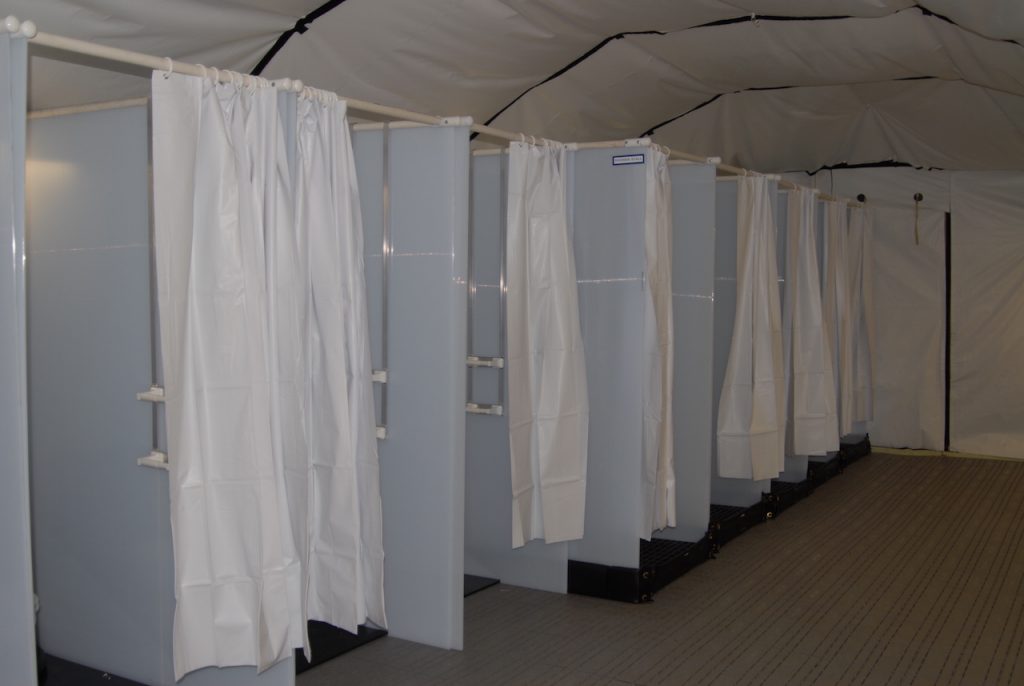

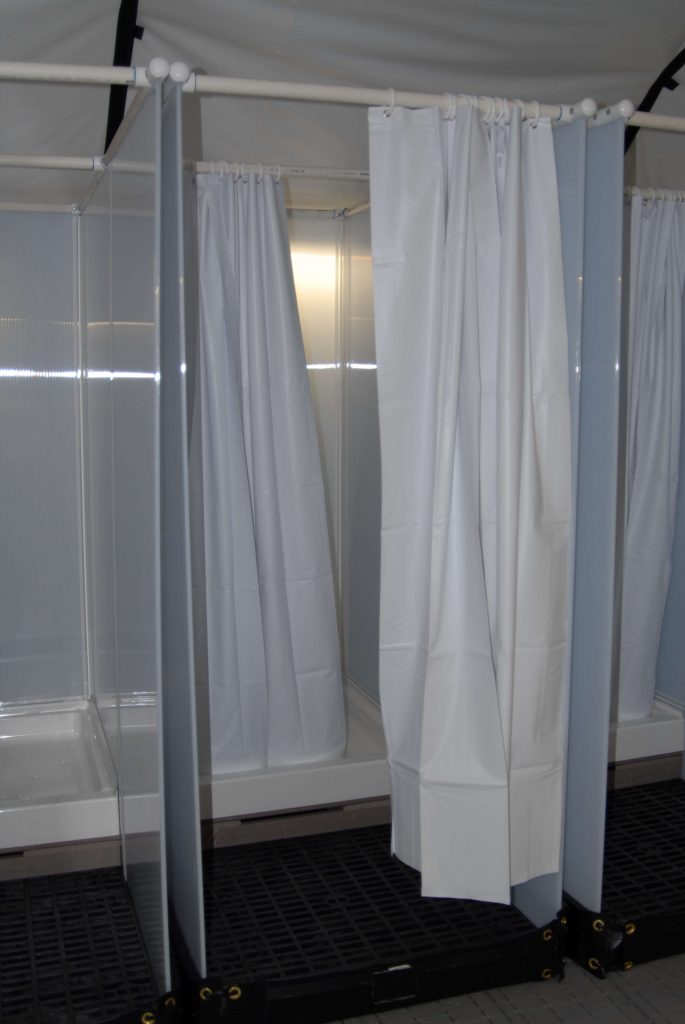

Five Shower Stalls
Five Flushing Toilet Stalls
Four Hand Washing Sinks
Heavy-duty Hard Flooring
Easy Plumbing Installation

The CAMSS 20Q Lavatory package provides you with a quick, simple, and complete shelter solution. Each lavatory package comes with five enclosed toilet stalls with flushing toilets, four enclosed shower stalls, four hand washing sinks, and ruggedized fluorescent tube lights. The plumbing is designed to be as quick and easy to set up as the shelter is. Simplify your shower and latrine needs with the CAMSS 20Q Lavatory package.

National Stock Number:
Part Number: CAMSS-20Q32-Lavatory-T (Tan)	Part Number: CAMSS-20Q32-Lavatory-G (Green)

General Info	Measures 20’ wide x 32’6” long x 10’ tall Usable area of 650 square feet 1150 lbs unpackaged Assembles in 30 minutes with trained four-person crew Used for lavatories, latrines, and showers
Cover / Ends	15 oz/sq yd Mil-Spec 44103D fabric Vestibule connectors over entries can be used to connect to other shelters or vestibules Includes two (2) sets of two (2) 18” ECU ports with a cable port Total of four (4) mesh windows with wind resistant blackout covers Twelve (12) guy ropes for high wind Can connect multiple shelters end to end with integrated connector flap Built in infrared blocking to avoid detection from IR Fabric includes UV inhibitors and is mold and rot resistant. Fire resistant fabric that meets NFPA 701 Cover and ends are radio frequency welded Each end panel includes mesh attic vent with cover
Personnel Entries	Centered on ends of the shelter One (1) aluminum personnel door 30” wide x 80” high Locking flush mount handle Secured to the shelter without penetration of the fabric One (1) double zipper entry 36” wide x 84” high Tie offs to hold door open
Frame	Made from lightweight, high-strength aluminum Arches are made with 2”x 2” aluminum square tube Continuous base frame to provide vector proofing Frame components are interchangeable and color coded to speed assembly Pre-drilled base frame for easy anchoring Base frame includes connection points to secure cover to frame Frame is corrosion resistant aluminum
Floor	15 oz/sq yd non-slip Mil-Spec 44103D Floor system is secured to the base frame Removable for cleaning and replacement without disassembly of shelter Continuous hook and loop perimeter for vector proofing to keep bugs and critters out Additional Personnel Hard Modular Flooring
Extreme Temperature Kit	Shelter includes an internal liner system that helps to maintain internal working conditions of 40° – 80° F in ambient temperatures of -25° to 125° F when supported by a 5-Ton military environmental control unit Air sock runs the length of the shelter and has spot cooling 8 oz/sq yd Mil-Spec fabric Liner is flame resistance per test method ASTM D6413 After flame – 2 seconds max Char length – 6” max
Electrical	Shelter System includes complete internal electrical system Single phase electrical panel Two (2) GFCI 20A breakers Two (2) 20A breakers One (1) light switch with breaker Four (4) twist lock cable connectors Ten (10) ruggedized fluorescent tube lights 50 ft. 20A power cable included
Anchoring and High Wind Kit	Thirty-six (36) double headed 18” base frame spikes Twelve (12) guy ropes and guy spikes
Spares / Repair	30 day spares/repair Patch materials for cover, liner, and floor which are all air transportable without special hazmat requirement
Tools & Equipment	Verified manual Sledge hammer Spike puller Four (4) pull over ropes
Life Expectancy / Warranty	Shelter has a usable life of 10 years and a 20 year storage life Shelter includes a standard manufacturer’s warranty
Packaging	Wood crate Forklift ready and Export approved 43” W x 101” L x 30” H 310 lbs (empty crate) 1460 lbs (total weight with shelter) Six fit on a 463L pallet
Testing	Designed to maintain internal temperatures of 40°F to 80°F in ambient temperature of -25°F to 125°F when supported by a 5-ton military environmental control unit. Meets Test Operations Procedure (TOP) 10-2-175 Tents and Shelters wind load test per independent testing. Engineered to withstand 100 mph wind load per ASCE 7-16. Meets Test Operations Procedure (TOP) 10-2-175 Tents and Shelters snow load test per independent test. Engineered to withstand 20 psf ground snow load per ASCE 7-16. Met Test Operations Procedure (TOP) 10-2-175 Tents and Shelters blackout test per independent testing of similar type and size shelter. 20 Set-up/Strikes durability and be fully deployable.
Other Lavatory Package Features	Five shower stalls Five flushing toilet stalls Four hand washing sinks Personnel Hard Flooring
	Design loads assume that actual soil conditions will meet one of the following in accordance with ASTM D-2487/2488: Sand gravel / very dense sand Hardpan / Asphalt Fabric weights are nominal *Dimensions are nominal
