CAMSS 20Q Medical

Shelter Model	CAMSS 20Q Medical
Part Number	CAMSS-HIT-20Q32-Medical-T (Tan), CAMSS-HIT-20Q32-Medical-G (Green)
Floor	Non-Slip Mil-Spec 44103D with Vector Proofing and is Removable without Shelter Disassembly
Dimensions	20′ W x 32’6″ L x 10′ H – 1150 lbs. Unpackaged
Square Footage	650 Sq. Ft.
Set-Up and Strike Time / People	30 Minutes / 4 People
Typical Uses	Medical Clinics, Hospitals
Frame Arches	2″ x 2″ Aluminum Slip-Fit Arches
Cover & End Panels	15 oz/sq yd Mil-Spec 44103D with FR, IR, Blackout, UV and Mildew Resistance
Windows	Four (4) Mesh Windows with Wind Resistant Blackout Covers
Zipper Entry	Two (2) Double Zipper Entries (48″ x 84″) with Vestibule Connectors
Liner	8 oz/sq yd White Mil-Spec Single-piece Liner with FR, Blackout, UV and Mildew Resistance
ECU Ports and Air Sock	Two (2) Sets of Two (2) 18″ ECU Ports with a Cable Port, and Fabric Air Sock with Spot Cooling
Electrical	Single Phase Electrical Panel, Twenty-four (24) Outlets, Ten (10) Lights, and Power Cable
Anchoring	Double headed 18″ Base Frame Spikes and Guy Ropes with Guy Spikes
Extreme Temperatures	Designed to Maintain Inside Temperatures of 40° to 80°F in Ambient Temperatures of -25° to 125° F with an ECU
Wind	Engineered to Withstand Winds of 100 mph per ASCE 7-16
Snow	Engineered to Withstand 20 psf Ground Snow Load per ASCE 7-16
Durability	20 Set-up/Strikes and Fully Deployable

Recipient Email*

Email multiple recipients by separating email addresses with a comma.

Sender's Email*

Subject*

Message

Specifications for the CAMSS 20Q Medical

View online

Includes CAMSS 20Q Small Shelter System
Includes CAMSS 20Q Single Piece Liner System
Many Options for Shelter Connections

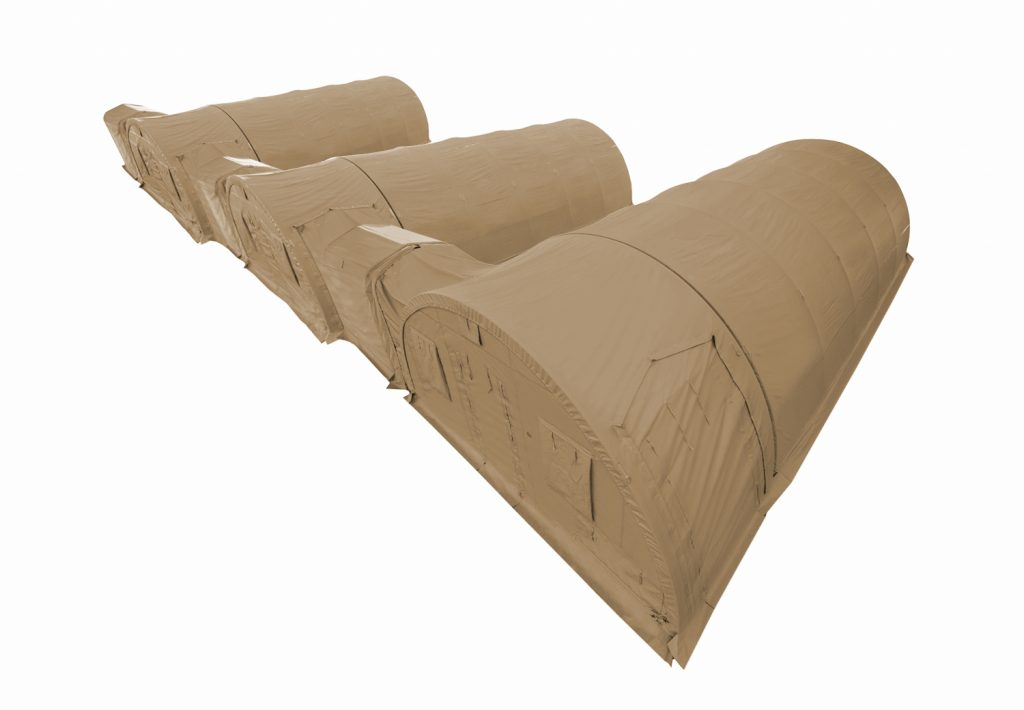

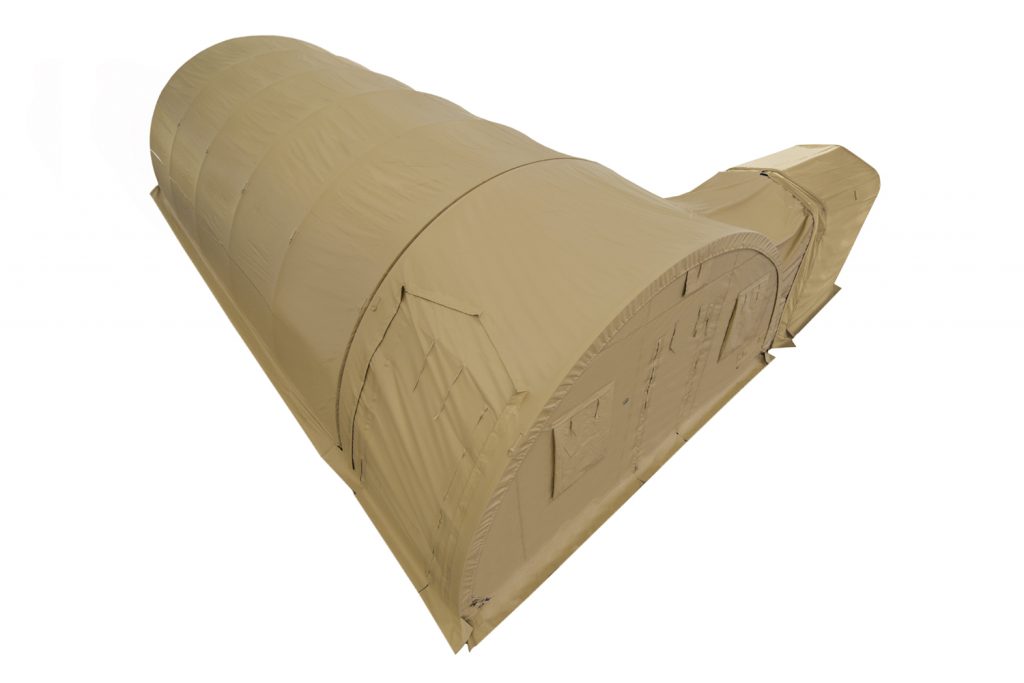

The CAMSS 20Q Medical uses a modified CAMSS 20Q Small Shelter System to create a medical shelter system that can be easily expandable with your existing 20Q Shelters or with additional CAMSS 20Q Medical Systems. This system has the option of a Medical Extension which can be connected to the end of the shelter to create more space and allow medical vestibules to attach to the sides. This system makes it convenient to build up your ideal shelter layout.

National Stock Number:
Part Number: CAMSS-HIT-20Q32-Medical-T (Tan)	Part Number: CAMSS-HIT-20Q32-Medical-G (Green)

General Info	Measures 20’ wide x 32’6” long x 10’ tall Usable area of 650 square feet 1150 lbs unpackaged Assembles in 30 minutes with trained four-person crew Used for medical clinics, hospitals
Cover / Ends	15 oz/sq yd Mil-Spec 44103D fabric Vestibule connectors over entries can be used to connect to other shelters or vestibules Includes two (2) sets of two (2) 18” ECU ports with a cable port Total of four (4) mesh windows with wind resistant blackout covers Twelve (12) guy ropes for high wind Can connect multiple shelters end to end with integrated connector flap Built in infrared blocking Fabric includes UV inhibitors and is mold and rot resistant. Fire resistant fabric that meets NFPA 701 Cover and ends are radio frequency welded Each end panel includes mesh attic vent with cover
Personnel Entries	Two (2) double zipper entry (48” W x 84” H) Tie offs to hold door open Wider doorways to allow easy access for gurneys Centered on ends of the shelter
Frame	Made from lightweight, high-strength aluminum Arches are made with 2”x 2” aluminum square tube Continuous base frame to provide vector proofing Frame components are interchangeable and color coded to speed assembly Pre-drilled base frame for easy anchoring Base frame includes connection points to secure cover to frame Frame is corrosion resistant aluminum
Fabric Floor	15 oz/sq yd non-slip Mil-Spec 44103D Floor system is secured to the base frame Removable for cleaning and replacement without disassembly of shelter Continuous hook and loop perimeter for vector proofing to keep bugs and critters out
Liner	Shelter includes an internal liner system that helps to maintain internal working conditions of 40° – 80° F in ambient temperatures of -25° to 125° F when supported by a 5-Ton military environmental control unit Air sock runs the length of the shelter and has spot cooling Single piece liner system allows for easy installation 8 oz/sq yd Mil-Spec fabric Liner is flame resistance per test method ASTM D6413 After flame – 2 seconds max Char length – 6” max
Electrical	Single phase electrical panel Two (2) GFCI 20A breakers Two (2) 20A breakers One (1) light switch with breaker Four (4) twist lock cable connectors Two (2) outlet lines with a total of twenty-four (24) quick connect 110V outlets Ten (10) quick connect incandescent lights with protective metal cages 50 ft. 20A power cable included
Anchoring	Thirty-six (36) double headed 18” base frame spikes Twelve (12) guy ropes and guy spikes
Spares / Repair	30 day spares/repair Patch materials for cover, liner, and floor which are all air transportable without special hazmat requirement
Tools & Equipment	Verified manual Sledge hammer Spike puller Four (4) pull over ropes
Life Expectancy / Warranty	Shelter has a usable life of 10 years and a 20 year storage life Shelter includes a standard manufacturer’s warranty
Packaging	Wood crate Forklift ready and Export approved 43” W x 101” L x 30” H 310 lbs (empty crate) 1460 lbs (total weight with shelter) Six fit on a 463L pallet
Testing & Engineering	Maintain internal temperatures of 40°F to 80°F in ambient temperature of -25°F to 125°F when supported by a 5-ton military environmental control unit Meets Test Operations Procedure (TOP) 10-2-175 Tents and Shelters wind load test Engineering calculation demonstrate shelter performance will meet a 100 mph wind load per ASCE 7-16 Meets Test Operations Procedure (TOP) 10-2-175 Tents and Shelters snow load test Engineering calculations demonstrate shelter performance will meet a 20 psf ground snow load per ASCE 7-16 Meets Test Operations Procedure (TOP) 10-2-175 Tents and Shelters blowing rain test Meets Test Operations Procedure (TOP) 10-2-175 Tents and Shelters blackout test at a minimum distance of 100 meters with the naked eye Meets Test Operations Procedure (TOP) 10-2-175 Tents and Shelters blackout test at a minimum distance of 300 meters with night vision goggles Meets 20 Set-up/Strikes cycles of durability testing per U.S. government test
	Design loads assume that actual soil conditions will meet one of the following in accordance with ASTM D-2487/2488: Sand gravel / very dense sand Hardpan / Asphalt Fabric weights are nominal *Dimensions are nominal
