CAMSS 20TAC13

Shelter Model	CAMSS 20TAC13
Part Number	CAMSS-20TAC13T (Tan), CAMSS-20TAC13G (Green)
Dimensions	20′ W x 13′ L x 9’4″ H – 355 lbs. Unpackaged
Square Footage	260 Sq. Ft.
Set-Up and Strike Time / People	3 Minutes / 4 People
Typical Uses	Rapid Deployment, TOC, Emergency Response, Disaster Relief
Frame Arches	One-Piece Anodized Aluminum Folding Frame
Cover & End Panels	15 oz/sq yd Mil-Spec 44103D with FR, IR, Blackout, UV and Mildew Resistance
Windows	Four (4) Mesh Windows with Wind Resistant Blackout Covers
Zipper Entry	Two (2) Double Zipper Entries (36″ x 84″) with Vestibule Connectors
Floor	Non-Slip Mil-Spec 44103D with Vector Proofing and is Removable without Shelter Disassembly
Liner	8 oz/sq yd White Mil-Spec Liner Fabric with FR, Blackout, UV and Mildew Resistance
ECU Ports and Air Sock	Two (2) Sets of Two (2) 18″ ECU Ports with a Cable Port, and Fabric Air Sock with Spot Cooling
Electrical	Six (6) Quick Connect 110V Outlets, (Optional Lights Available)
Anchoring	Double Headed 18″ Anchoring Spikes and Guy Ropes with Guy Spikes
Extreme Temperatures	Designed to Maintain Inside Temperatures of 40° to 80°F in Ambient Temperatures of -25° to 125° F with an ECU
Wind	Engineered to Withstand Winds of 65 mph and Gusts of 100 mph
Snow	Engineered to Withstand 10 psf Snow Load
Durability	40+ Set-up/Strikes and Be Fully Deployable

Recipient Email*

Email multiple recipients by separating email addresses with a comma.

Sender's Email*

Subject*

Message

Specifications for the CAMSS 20TAC13

View online

A member of 20TAC Family of Rapid Deployment Shelters
20’ Width x 13' Length x 9’4” Height
Sets up in as Little as 3 Minutes
Rigorous Military Testing in Extreme Conditions
Simple One-piece Frame and One-piece Fabric Bundle

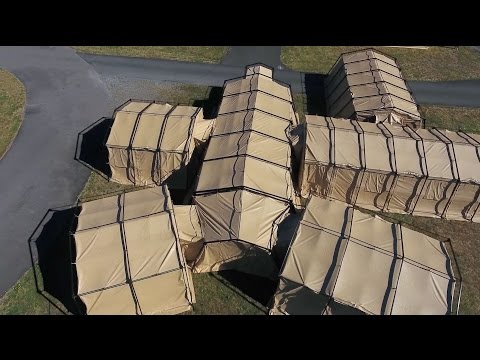

When your troops are in a harsh environment and speed is vital, you can count on the CAMSS 20TAC shelter systems to go up quickly, stay up strong, and rapidly strike to a light-weight compact size. The CAMSS 20TAC family of shelter systems include the 20TAC13, the 20TAC20, and the 20TAC32. The CAMSS 20TAC family also make complexing easy. You can quickly connect shelters together to build your own layout. Designed with an intuitive 1-piece folding frame and 1-piece fabric bundle, a CAMSS 20TAC shelter can be set up in as little as 3 minutes. With durable aluminum alloy parts, this shelter is longer lasting than other rapid deployment shelters available. 20TAC-gif

National Stock Number:
Part Number: CAMSS-20TAC13T (Tan)	Part Number: CAMSS-20TAC13G (Green)

General Info	Measures 20’ wide x 13’ long x 9’4” tall Usable area of 260 square feet 355 lbs unpackaged One-piece folding frame for quick assembly and strike times Assembles in under 3 minutes with a trained four-person crew Used for rapid deployment situations like a tactical operations center (TOC), emergency response, or disaster relief
Fabric Bundle	15 oz/sq yd Mil-Spec 44103D fabric Two (2) double zipper entries (36” W x 84” H) Two (2) sets of two (2) 18” ECU ports with a cable port Total of four (4) mesh windows with wind resistant blackout covers Guy ropes clip to frame for wind load capability up to 65 MPH Double zipper entries include vestibule connector to connect to other shelters or vestibules Built-in infrared (IR) blocking Fabric includes UV inhibitors and is mold and rot resistant Fire resistant fabric that meets NFPA 701 Cover and ends are radio frequency welded
Frame	Made from lightweight, high-strength anodized aluminum One-piece folding frame Intuitive frame assembly Pre-drilled base feet for easy anchoring Frame is anodized and corrosion resistant
Fabric Floor	15 oz/sq yd non-slip Mil-Spec 44103D vinyl fabric Connected to fabric bundle for quick setup and provides vector proofing
Liner	Shelter includes an internal liner system pre-attached to the fabric bundle that helps to maintain internal working conditions of 40° – 80° F in ambient temperatures of -25° to 125° F when supported by a 5-Ton military environmental control unit Air sock running the length of the shelter and has spot cooling 8 oz/sq yd Mil-Spec fabric Liner is flame resistant per test method ASTM D6413 After flame – 2 seconds max Char length – 6” max
Electrical	Two (2) outlet lines with a total of six (6) quick connect 110V receptacles
Anchoring	Six (6) double headed 18” base spikes Six (6) guy ropes and guy spikes
Spares / Repairs	30 day spares/repair Patch materials for cover, liner, and floor which are all air transportable without special hazmat requirement
Tools & Equipment	Verified manual Sledge hammer Spike puller
Life Expectancy	Shelter has a usable life of 10 years and a 20 year storage life
Packaging	Bags & Straps on a pallet Forklift ready Export ready 48” W x 100” L x 16” H 50 lbs (packaging only) 405 lbs (total weight with shelter)
Testing & Engineering	Designed to maintain internal temperature of 40°F to 80°F in ambient temperatures of -25°F to 125°F when supported by a 5-ton military environmental control unit Meets Test Operations Procedure (TOP) 10-2-175 Tents and Shelters 55 mph sustained wind and 65 mph gust per testing of similar type TAC shelter. (NATC testing of CAMSS20TAC20) Engineering calculations demonstrate shelter performance meets a 65 mph sustained wind load and 100 mph gusts per ASCE 7-16. Meets Test Operations Procedure (TOP) 10-2-175 Tents and Shelters 10 psf snow load per testing of similar type TAC shelter. (NATC testing of CAMSS20TAC20) Meets Test Operations Procedure (TOP) 10-2-175 Tents and Shelters wind-driven rain test per testing of similar type TAC shelter. (NATC testing of CAMSS20TAC20) Meets Test Operations Procedure (TOP) 10-2-175 Tents and Shelters blackout test at 100m with naked eye and 300m with night vision goggles per testing of similar type TAC shelter. (U.S. Army Aberdeen Test Center testing of CAMSS20TAC20) 40+ setup/strike and fully deployable per test report of similar type TAC shelter. (U.S. Army Aberdeen Test Center and CAMSS testing of CAMSS20TAC20)
	Design loads assume that actual soil conditions will meet one of the following in accordance with ASTM D-2487/2488: Sand gravel / very dense sand Hardpan / Asphalt Fabric weights are nominal *Dimensions are nominal
