CAMSS 20EX CDK

Shelter Model	CAMSS 20EX8
Part Number	CAMSS-20EX8-CDK-T (Tan), CAMSS-20EX8-CDK-G (Green)
Dimensions	20′ W x 8′ L x 10′ H – 395 lbs. Unpackaged
Square Footage	160 Sq. Ft.
Set-Up and Strike Time / People	20 Minutes / 4 People
Typical Uses	Kitchen, Dinning
Frame Arches	Aluminum Slip-Fit
Cover & End Panels	15 oz/sq yd Mil-Spec 44103D with FR, IR, Blackout, UV and Mildew Resistance
Windows	Two (2) Mesh Windows with Wind Resistant Blackout Covers
Zipper Entry	Three (3) Double Zipper Entries (36″ x 84″) with Vestibule Connectors
Floor	Non-Slip Mil-Spec 44103D with Vector Proofing and is Removable without Shelter Disassembly
Liner	8 oz/sq yd White Mil-Spec Liner Fabric with FR, Blackout, UV and Mildew Resistance
ECU Ports and Air Sock	One (1) Set of Two (2) 18″ ECU Ports and a Cable Port, and Fabric Air Sock with Spot Cooling
Anchoring	Double headed 18″ Base Frame Spikes and Guy Ropes with Guy Spikes
Extreme Temperatures	Designed to Maintain Inside Temperatures of 40° to 80°F in Ambient Temperatures of -25° to 125° F with an ECU
Wind	Meets TOP 10-2-175 Wind Load Test Per Independent Testing
Snow	Meets TOP 10-2-175 Snow Load Test Per Independent Testing
Durability	20 Set-up/Strikes and Fully Deployable Per Independent Testing

Recipient Email*

Email multiple recipients by separating email addresses with a comma.

Sender's Email*

Subject*

Message

Specifications for the CAMSS 20EX CDK

View online

Connects to Containerized Deployment Kitchen
Connects to ESPEK Dining Shelter
20' Wide x 8' Long x 10' High

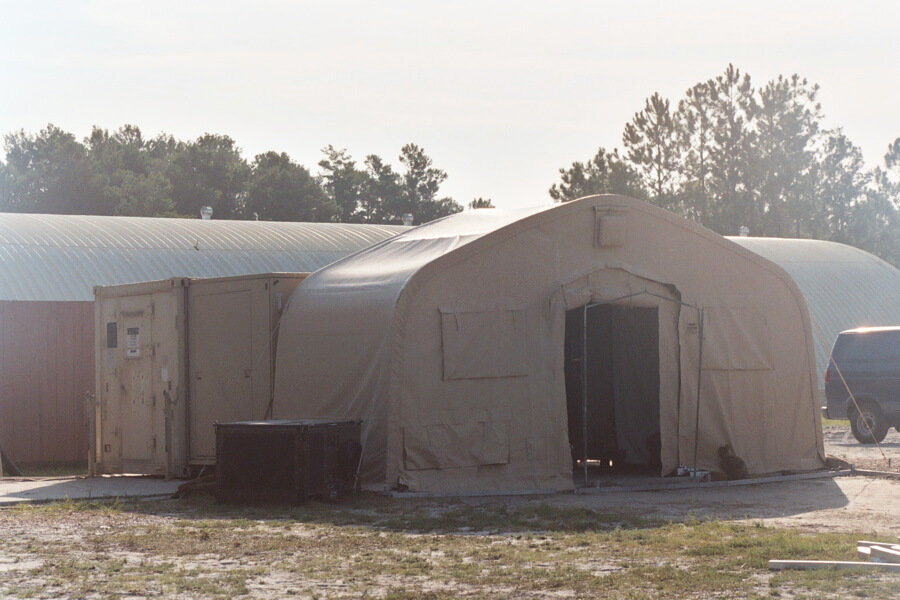

The CAMSS 20EX8 Containerized Deployment Kitchen (CDK) Shelter is designed for immediate worldwide deployment and measures 20’ wide by 8’ long. Weighing in at under 400 pounds, the CDK Shelter provides maximum portability while remaining a complete durable system that is quick to assemble on to your existing CDK. A CDK is often the first kitchen to hit the front lines until more extensive facilities, such as the CAMSS KSS, can be established. The CAMSS CDK Shelter is provides added protection for the serving line and the kitchen itself.

National Stock Number:
Part Number: CAMSS-20EX8-CDK-T (Tan)	Part Number: CAMSS-20EX8-CDK-G (Green)

General Info	Measures 20’ wide x 8’ long x 10’ tall with a 7’ sidewall Usable area of 160 square feet 395 lbs unpackaged Assembles in 20 minutes with a trained four-person crew Used for kitchen, dining
Cover / End Panels	15 oz/sq yd Mil-Spec 44103D fabric Boot connectors over entries can be used to connect to other shelters or vestibules One (1) set of two (2) 18” ECU ports with a cable port Total of two (2) mesh windows with wind resistant blackout covers Guy ropes for wind load capability up to 100 MPH Can connect multiple shelters end to end with integrated connector flap Built in infrared (IR) blocking Fabric includes UV inhibitors and is mold and rot resistant Fire resistant fabric that meets NFPA 701 Cover and ends are radio frequency welded One end panel is replaced by a fabric connector for a containerized deployment kitchen (CDK)
Personnel Entry	Three (3) double zipper entries (36” W x 84” H) Tie offs to hold door open
Frame	Made from lightweight, high-strength aluminum Continuous base frame to provide vector proofing Frame components are interchangeable and color coded to speed assembly Pre-drilled base frame for easy anchoring Base frame has connection points to secure cover to frame Frame is corrosion resistant
Fabric Floor	15+ oz/sq yd non-slip Mil-Spec 44103D vinyl fabric Floor system is secured to the base frame Removable floor cleaning or replacement without shelter disassembly Continuous hook and loop perimeter for vector proofing
Liner	Shelter includes an internal liner system that helps to maintain internal working conditions of 40° – 80° F in ambient temperatures of -25° to 125° F when supported by a 5-Ton military environmental control unit Air sock runs the length of the shelter and has spot cooling 8 oz/sq yd Mil-Spec fabric Liner is flame resistant per test method ASTM D6413 After flame – 2 seconds max Char length – 6” max
Anchoring	Ten (10) double headed 18” base frame spikes Four (4) guy ropes and guy spikes
Spares / Repairs	30 day spares/repair Patch materials for cover, liner, and floor which are all air transportable without special hazmat requirement
Tools & Equipment	Verified manual Sledge hammer Spike puller
Life Expectancy	Shelter has a usable life of 10 years and a 20 year storage life
Packaging	Wood crate Forklift ready Export approved 43” W x 101” L x 30” H 310 lbs (empty crate) 705 lbs (total weight with shelter) Six fit on a 463L pallet
Engineering & Design	Designed to maintain internal temperatures of 40°F to 80°F in ambient temperature of -25°F to 125°F when supported by a 5-ton military environmental control unit. Meets Test Operations Procedure (TOP) 10-2-175 Tents and Shelters wind load test procedures per independent testing. Engineered to withstand 100 mph wind load per ASCE 7-16. Meets Test Operations Procedure (TOP) 10-2-175 Tents and Shelters snow load test procedures per independent test. Engineered to withstand 20 psf ground snow load per ASCE 7-16. Met Test Operations Procedure (TOP) 10-2-175 Tents and Shelters blackout test procedures per independent testing of similar type and size shelter. 20 Set-up/Strikes durability and be fully deployable.
	Design loads assume that actual soil conditions will meet one of the following in accordance with ASTM D-2487/2488: Sand gravel / very dense sand Hardpan / Asphalt Fabric weights are nominal *Dimensions are nominal
